Description
Manufactured from themoplastic EPDM (a rubber-like material), these clever toggle fasteners have numerous applications. Most often used to secure hardware and other objects to thin steel, aluminium, plywood or fibreglass surfaces where there is no access to the cavity.

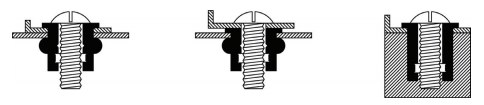

With a captive brass nut, the toggle expands within the cavity as it is tightened. The rubber-like compound provides a seal against water and salt penetration while insulating against vibration.
- Available in a range of sizes to suit many applications onboard your vessel.
- Sold individually, with automatic discounts for purchases over 50 units.
- Note that the nuts have metric threads and the bolt is not supplied.
- M10 & M12 also available by special order.
| SKU | Thread | Grip (mm) | Hole Diam. (mm) | Flange Diam. (mm) | Flange Height (mm) | Overall Length (mm) | Torque (Nm) |
|---|---|---|---|---|---|---|---|
| RVT-IN-RNM3100 | M3 | 0.4 to 4.0 | 6.2 | 11.0 | 1.4 | 12.6 | 0.25 - 0.5 |
| RVT-IN-RNM3250 | M3 | 9.5 to 13.0 | 6.2 | 14.0 | 0.9 | 24.9 | 0.25 - 0.5 |
| RVT-IN-RNM4140 | M4 | 0.4 to 4.4 | 8.0 | 19.1 | 1.5 | 14.2 | 0.25 - 0.4 |
| RVT-IN-RNM4240 | M4 | 8.5 to 15.0 | 8.0 | 11.0 | 1.2 | 24.0 | 0.25 - 0.4 |
| RVT-IN-RNM5150 | M5 | 0.4 to 4.9 | 9.7 | 12.7 | 0.9 | 14.1 | 0.34 - 0.5 |
| RVT-IN-RNM5250 | M5 | 7.9 to 16.0 | 9.7 | 14.0 | 1.3 | 26.5 | 0.3- 0.7 |
| RVT-IN-RNM6150 | M6 | 0.4 to 2.8 | 12.8 | TBC | TBC | TBC | 0.8 - 1.0 |
| RVT-IN-RNM6200 | M6 | 0.8 to 4.7 | 12.8 | 19.0 | 4.75 | 21.1 | 0.8 - 1.0 |
| RVT-IN-RNM6250 | M6 | 6.4 to 11.5 | 12.8 | 14.0 | 2.0 | 26.7 | 0.8 - 1.0 |
| RVT-IN-RNM6350 | M6 | 11.5 to 23.0 | 13.1 | 14.0 | 1.3 | 35.0 | 0.8 - 1.0 |
| RVT-IN-RNM8200 | M8 | 0.4 to 4.0 | 16.0 | 21.5 | 3.2 | 18.3 | 1.0 - 1.5 |
| RVT-IN-RNM8300 | M8 | 2.0 to 18.0 | 18.1 | 20.5 | 2.0 | 30.0 | 3.0 - 4.0 |
