Description

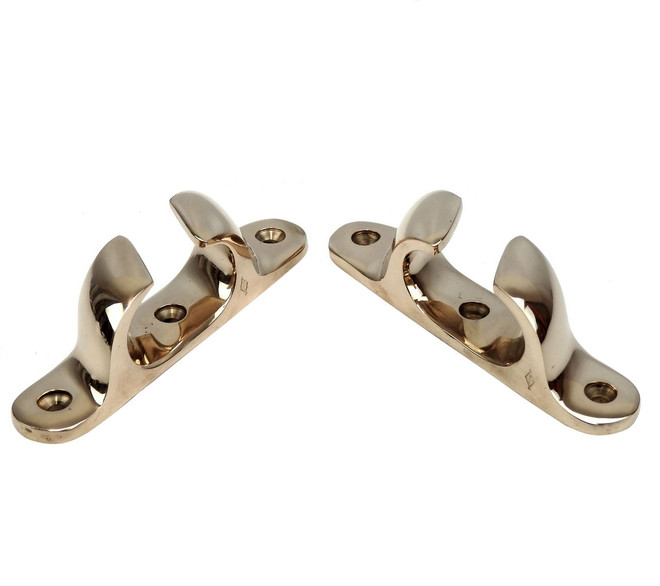

Beautiful heavy-duty angled bronze fairleads, or bow chocks, made to the highest standards.
Available in marine quality polished bronze.
The price quoted is for one port or one starboard fairlead.
SKU | Length | Width | Max Lead Size | Hole Centres | Fasteners | Davey's Product Code |
---|---|---|---|---|---|---|
DVY-1112/GM/LH/100 & DVY-1112/GM/RH/100 | 4"(100mm) | 3/4" (19mm) | 15mm | 81mm | 3 x 8g screws or #8 machine screws | 1112/GM/LH/100 & 1112/GM/RH/100 |
DVY-1112/GM/LH/125 & DVY-1112/GM/RH/125 | 5" (127mm) | 1" (24mm) | 18mm | 105mm | 3 x 8g screws or #8 machine screws | 1112/GM/LH/125 & 1112/GM/RH/125 |
DVY-1112/GM/LH/150 & DVY-1112/GM/RH/150 | 6" (150mm) | 1-1/4" (32mm) | 22mm | 60mm | 3 x 12g screws or #10 machine screws | 1112/GM/LH/150 & 1112/GM/RH/150 |
DVY-1112/GM/LH/200 & DVY-1112/GM/RH/200 | 8" (203mm) | 1-1/2" (37mm) | 34mm | 84mm | 3 x 14g screws or 1/4" machine screws | 1112/GM/LH/200 & 1112/GM/RH/200 |
DVY-1112/GM/LH/225 & DVY-1112/GM/RH/225 | 9" (228mm) | 1-1/2" (38mm) | 38mm | - | 3 x 14g screws or 1/4" machine screws | 1112/GM/LH/225 & 1112/GM/RH/225 |
DVY-1112/GM/LH/250 & DVY-1112/GM/RH/250 | 10" (255mm) | 1-7/8" (48mm) | 48mm | - | 3 x 14g screws or 1/4" machine screws | 1112/GM/LH/250 & 1112/GM/RH/250 |
DVY-1112/GM/LH/300 & DVY-1112/GM/RH/300 | 11-3/4" (300mm) | 2-1/8" (55mm) | 64mm | - | 3 x 14g screws or 1/4" machine screws | 1112/GM/LH/300 &1112/GM/RH/300 |
1 Review
-
Bronze Fairleads
These bronze fairleads are beautifully finished and are a little work of art in their own right. Every nicely-built wooden boat should have something like this to finish it off.
Michael. Townsville.
