Single pulley - swivel & becket

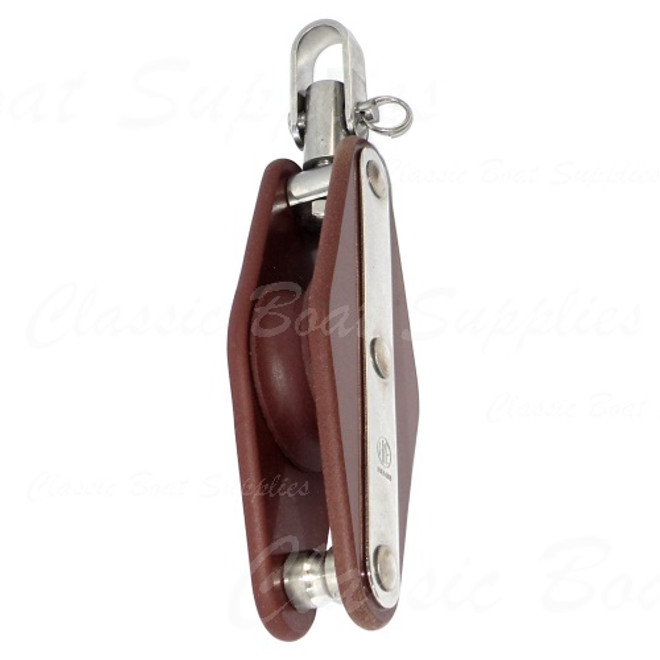

Single Tufnol Block - Swivel Eye with Becket

$107.00
(No reviews yet) Write a Review

Description

Tufnol is a traditional laminated plastic material made from phenolic resin and woven cotton or linen fabric. It is strong and light, and provides an economical, low maintenance and traditional solution for sailing boat blocks.

Our Tufnol blocks are manufactured in Holland with solid stainless steel frames and brass bush bearings.

The single Tufnol block, fitted with a swivel eye and becket, comes in four sizes to work with ropes from 10mm through to 16mm.

SKUShell SizeRope Size*Sheave DiameterTested Breaking LoadSafe Working Load
DVY-4325/OO/10 2-1/4" (58mm) 10mm 30mm Approx. 830kg 415kg
DVY-4325/OO/12 2-3/4" (70mm) 12mm 35mm Approx 1350kg 675kg
DVY-4325/OO/14 3-3/4" (95mm) 14mm 50mm Approx 2020kg 1010kg
DVY-4325/OO/16 4-3/4" (120mm) 16mm 63mm Approx 2200kg 1100kg

* Note - we recommend choosing products one rope size size larger than indicated to ensure adequate free movement.
